Similar to illustration
QRC-HUS-25-CC-G16-BT-W3AA
STAUFF Item No. 6100199944
Please get in touch with us if you are interested in purchasing our products or looking for an individual quotation based on your product or service requirements.
Push-Pull Female G1" Bspp Port
Bg 6-Iso 25 With Decompression
Valve And Safety Locking
Material No.
6100201580
Required Quantity
1 piece
Push-Pull Male G1" Bspp Port
Bg 6-Iso 25 With Decompression
Valve And Safety Locking
Material No.
6100201581
Required Quantity
1 piece
STAUFF Special - July 2025

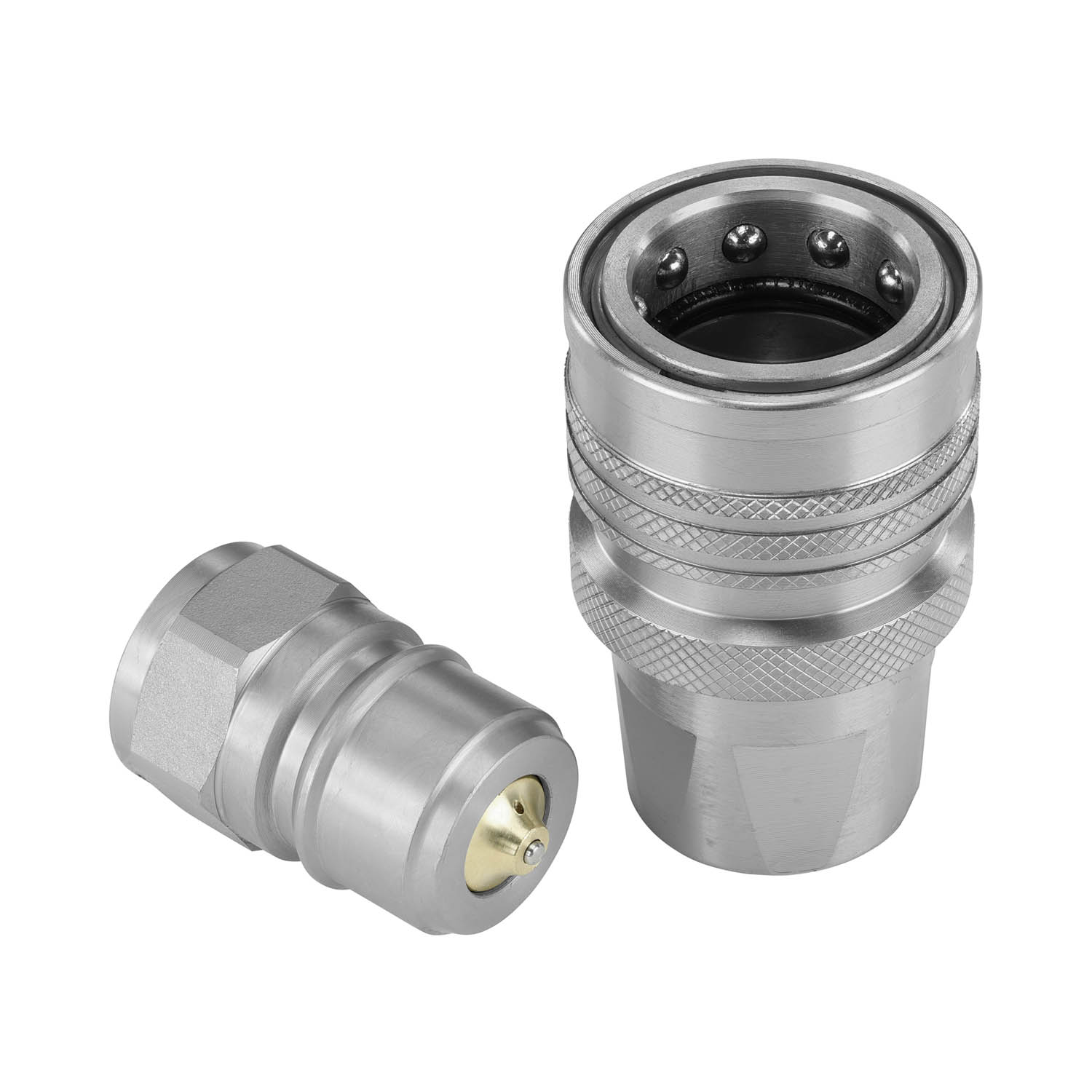

STAUFF Push-to-Connect Couplings ▪ Series HUS ▪ G1” BSPP Port Complete Coupling
Product Description
STAUFF push-to-connect HUS series couplings consist of a Female body and a Male tip and ensure the assembly of two connecting tube or hose ends can be quickly and easily coupled and uncoupled by hand, without the need of a tool.
Series HUS is made according to the Nordic interchange and available in nominal sizes: 10, 12, 19, 25 (3/8”- 1”)
Product Features
- Female and male parts are Zinc-Nickel plated
- Poppet valves available to prevent uncoupled leakage
- Male and female poppet valves fitted standard with decompression valve (pressure eliminator)
- Critical parts are hardened for durability
- Dependable ball-locking mechanism holds the mating halves together
- Female coupling is supplied standard with safety lock ring
- Working Pressure: 260 bar / 3770 PSI

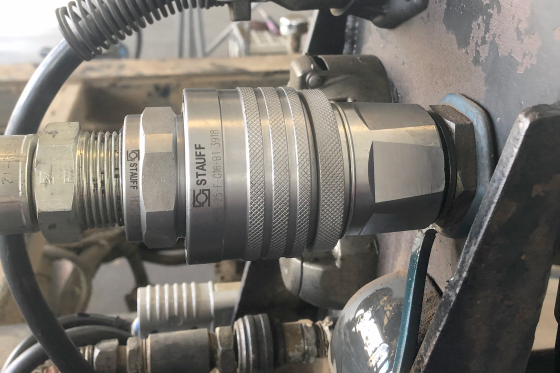

Product Applications
- Heavy road transport equipment
- Construction machinery
- Forestry machinery
