Colour Coding of Test Couplings and Test Hoses

Simple marking option to distinguish between hydraulic circuits

Product Specialist for Measuring and Analysis Technology

Any questions about the products on this page? Get in touch now!

03.06.2022
Product News

Hydraulic test couplings and test hose assemblies of the STAUFF Test 20 and STAUFF Test 15 series made of steel and stainless steel can optionally be equipped with colour marking rings.

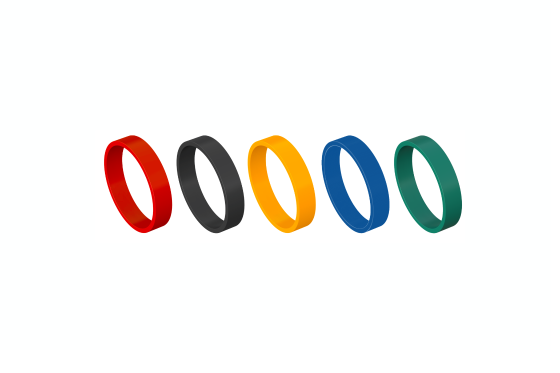

The colour marking rings are available as accessories in currently five standard colours:

  • Red (similar to RAL 9005)
  • Black (similar to RAL 3000)
  • Yellow (similar to RAL 1018)
  • Blue (similar to RAL 5005)
  • Green (similar to RAL 6002)

Depending on the required quantities, other colours are also available on request. Please note: Slight colour deviations may occur due to production.

Typical areas of application:
  • Marking to distinguish between hydraulic circuits
  • Marking to distinguish pressure ranges (suction line, pressure line, return line, etc.)
  • Marking to distinguish between test intervals and test times
  • Marking to distinguish between types of media (oil, gas, water, etc.)
  • Marking to distinguish between types of couplings (ball check or poppet valve)
  • Marking of suitable positions for sampling
  • Marking of suitable positions for filling or venting the system

Easy assembly without tools

If required, the colour marking rings can be applied by the user very easily, flexibly and without the need for tools. Retrofitting on already installed couplings and test hose lines is also possible without any problems.

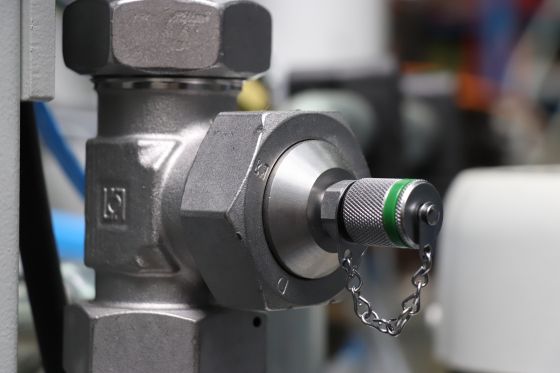

The rings are placed in the standard groove of the knurled protection and connection caps of test couplings and test hose connectors. The high resistance of the knurled caps made of steel and stainless steel to environmental influences is not limited by the use of the rings at all.

High-performance material

The colour marking rings are manufactured from thermoplastic polyurethane (TPU). TPU is a lightweight, elastic material with very good abrasion and wear resistance, paired with high resilience.

Selecting the right material was one of the crucial criteria for the development of the colour marking rings. Resistance to all media generally used in hydraulic systems was therefore of great importance. In addition to this, the ring material is also resistant to other oils, greases and a number of common solvents. The thermoplastic polyurethane (TPU) used is thermally stable and also features excellent UV resistance.
